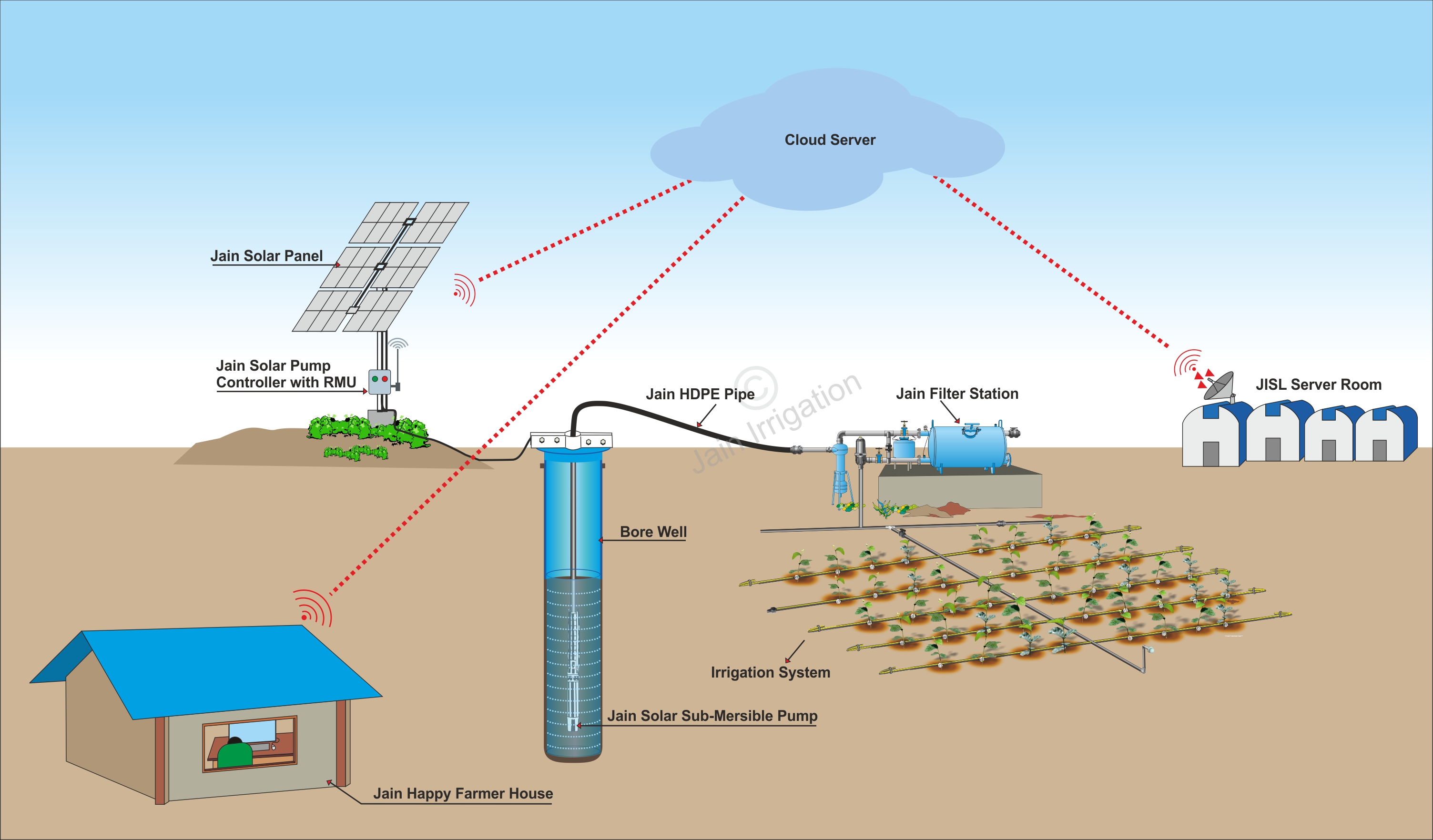

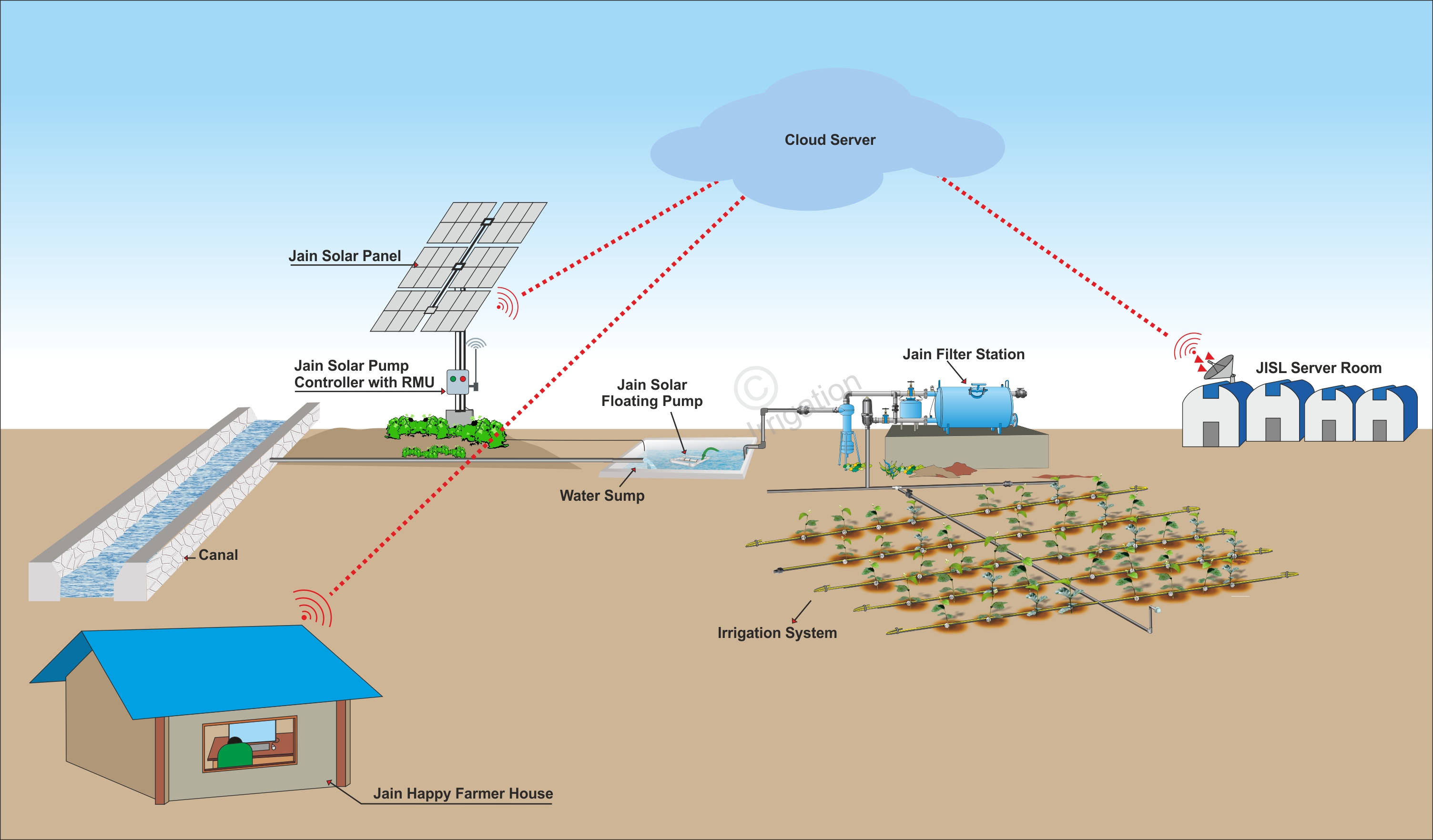

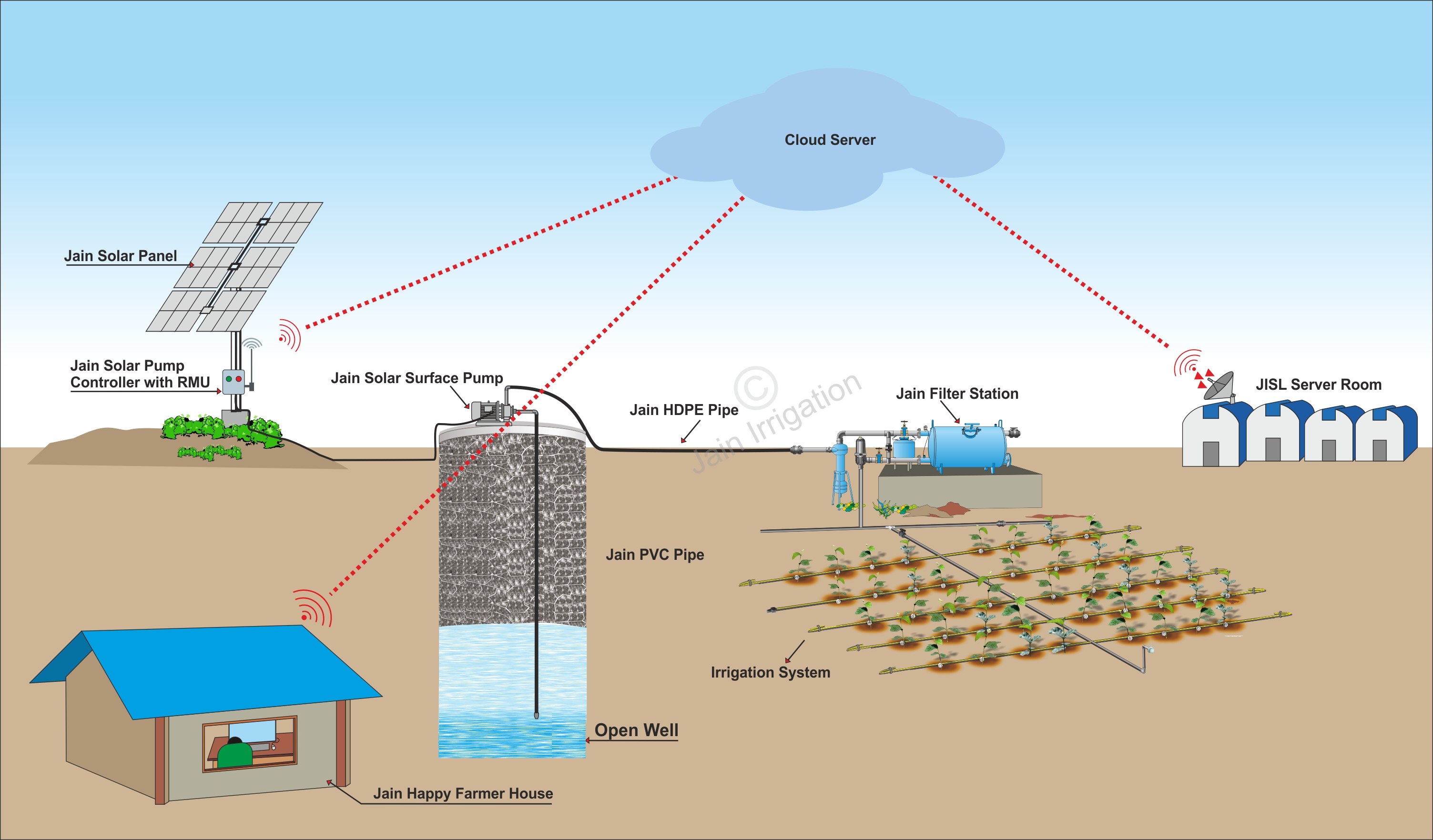

System which converts energy of sun rays into electrical energy to fetch the water from Bore well/ Open Well/ Canal / Pond etc is called as Solar Pump.

It consists of a number of solar PV modules connected in series - parallel combination to generate sufficient power to operate a motor pump. The solar PV modules are mounted on a metal frame in a manner that the mounting frame can be turned / tilted to ensure that the modules keep facing the sun throughout the day. The system does not have any storage battery since power generated is used directly then and there. The SPV array converts the solar energy into electricity which is used for running the motor pump set. The pumping system can draw water from the Bore well/ Open Well/ Canal / Pond.

a) Solar Motor ( DC or BLDC or AC )

b) Solar panels to generate solar energy

c) Controller to monitor the solar energy received from the solar panels and run the motor at optimum speed.

d) Tracker (Auto/manual) to tilt the solar panels towards the sun automatically or manually.

e) Steel Structure to hold the solar panels.

f) Necessary pipes cable and other spare parts.

g) Remote Monitoring Unit (Optional).

1) No Electricity required.

2) No fuel cost - as it uses available free sun light.

3) Can be operated Life Long.

4) Highly Reliable and Durable.

5) Easy to operate.

6) Useful for Clean, drinking water sanitation and also Irrigation.

7) Almost no maintenance required.

8) Provide consistent water.

Jain Photovoltaic Modules are made from high efficiency Mono / Multi Crystalline solar cells The cells used are of 14.0% to 17.5% efficiency. The cells are encapsulated in a low iron content, high transmissivity, tempered glass using UV stable Ethylene Vinyl Acetate (EVA) sheets. The premium quality back sheet protects the cells from the environmental conditions. The laminates are framed with strong and anodized aluminum profile with multiple holes for ease of installation. PV modules are fitted with 2/3/4 terminal junction box, depending on application. The mdoules with 4 terminal junction boxes are generally fitted with by-pass diodes.

Types

1) 10 - 74 Wp :

2) JJ-M636 Wp :

3) JJ-M648 Wp :

4) JJ-M654 Wp :

5) JJ-M660 Wp :

6) JJ-M672 Wp :

a) High efficiency multi crystalline silicon solar cells.

b) All materials of Lamination are UL approved.

c) High transmission textured toughened glass.

d) Module as per IEC-61215(2005), IEC-61730 safety class & IEC-61701 Salt Mist Test.

e) Suitable for off-grid & grid connected systems.

f) Narrow power tolerance for minimizing losses due to module power mismatch in an array.

g) High quality screwless anodized aluminum frame to provide structural strength to the Laminate.

h) TUV approved, IP65 rated 4 terminal junction box with 3 by-pass diodes (15A, Schottky) for quick and safe installation.

i) Bypass diodes to reduce the effect of partial shading of modules.

j) Preassembled cable length 1000 mm each with MC4 type +Ve and -Ve connectors.

k) Safe packing depending on mode of transport.

l) Manufacturing facility certified to ISO 9001:2008, ISO 14001:2004, BS OHSAS 18001:2007 and EN ISO 50001:2011.

With Jain Solar Water Heater you will have hot water when you want it, have no recurring cost of electricity, years of trouble free use and the assurance of a great service backup from the Jain Group. In other words total peace of mind! Whats more, you will be helping the environment too !.

Our natural resources are finite and thats why the use of non-conventional methods of heating water has begun. These are inexpensive, safe, reliable and are easy to maintain. More importantly, they are eco-friendly and provide trouble free service for years together.

Types

1) Flat Plate Collector

2) Evacuated Tube Collector

a) Negligible maintenance, daily water heating expenses almost nil, conserves precious natural resources, exemption from octroi & excise duty, 80% depreciation for commercial use.

b) Saves energy & environment, easy to install & maintain, no fear of shock / accidents, long life, mature technology.

A packaged home lighting system which can supply required power for 9 W / 11 W Compact Fluorescent Lamp (CFL) & 20 W Fan / TV (B&W)/ The unit consists of Lead Acid Tubular Battery, Charge Controller with electronic circuitry, charging cable and SPV Panel. Systems for more lighting hours and/or more lamps and fans / TV (B&W) are available on request.

Types

1) Lanterns : CFL & LED with Night Lamp(As Requirement)

2) Street Lighting Systems CFL & LED

3) Home Lighting Systems CFL & LED

4) Power Packs (As Requirement upto 25 KVA)

5) Blinkers

6) AD Boards

a) Aesthetic Design, Pollution-free and eco-friendly, bright and cool light, Easy to Install.

b) No Electric Connection Required, Autonomy for two to three no-sunshine days.

c) Short Circuit Protection, System is Completely Shock Proof Due to Low Voltage Circuitry

We are the proud partner of Simply Solar, Germany for the design and development of Solar concentrators. Scientist Mr. Wolfgang Scheffle, Director, Simply solar is inventor of Scheffler Solar concentrator. With being close association and great endeavours, we have developed this world class and wonderful system for very useful application of steam/direct cooking, industrial heating applications etc.

In case you don't have biological waste, you can grow energy crops for biogas production like corn, rosinweed, sweet sorghum, sugarbeat or algae. Also biogas plant can be used as separate business on waste recycling and energy production.

1) Agricultural companies : Pig farms, Cattle farms, Poultry farms, Crop production companies, Bio-diesel Producers, Waste recycling enterprises, Municipal waste water treatment plants.

2) Food Industry companies : Sugar mill, Distillery and bio-ethanol plants, Brewery plants, Dairy industries, Bakeries, Winery
